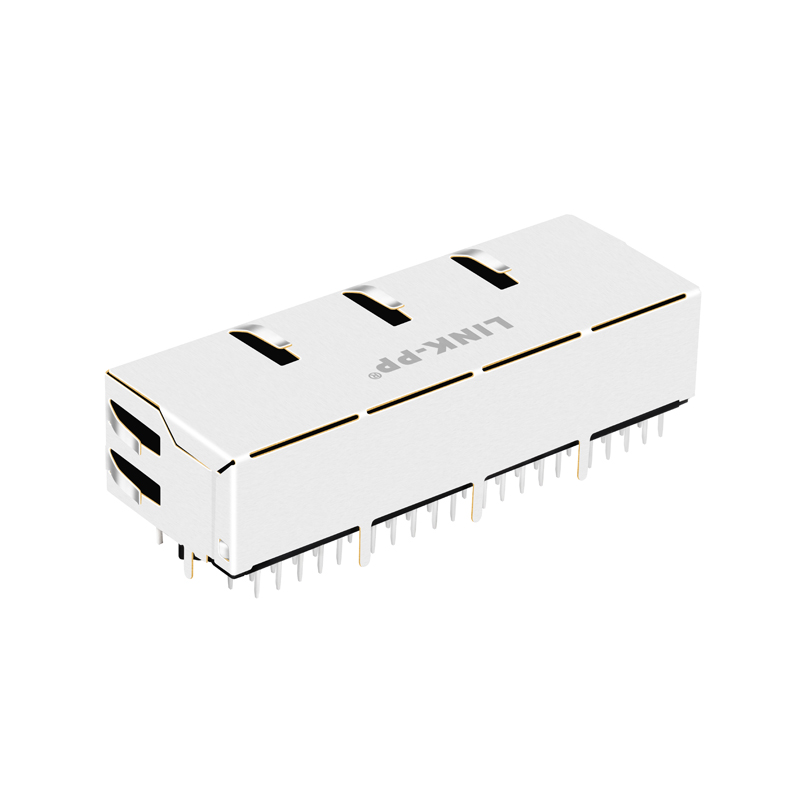

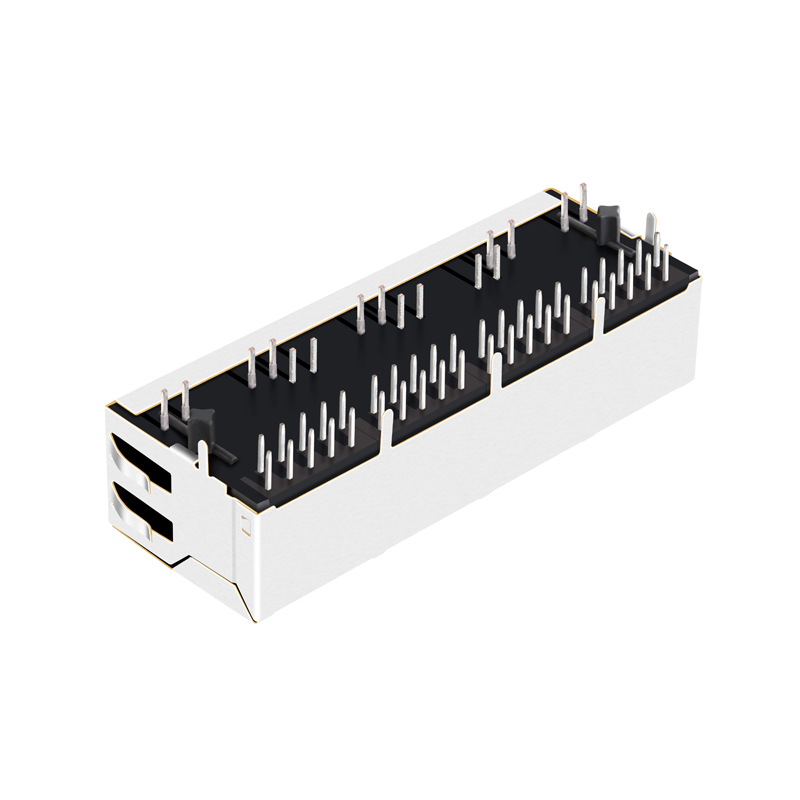

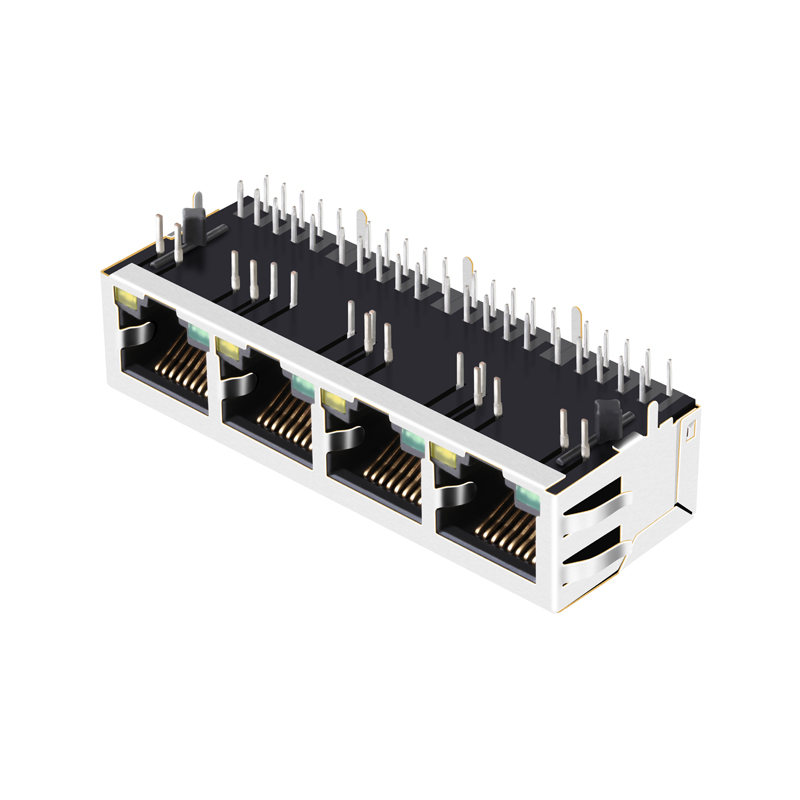

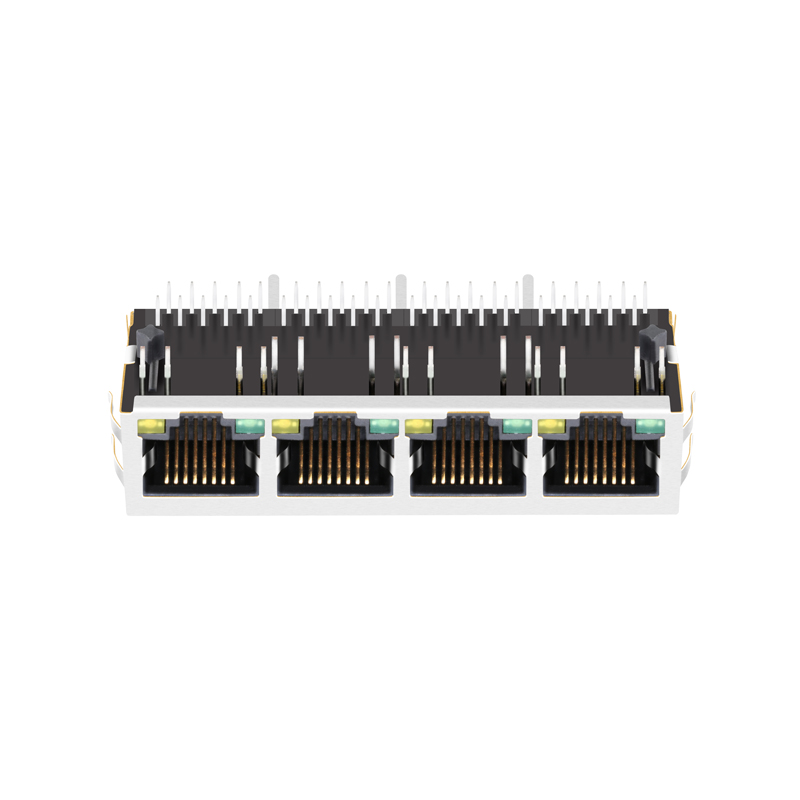

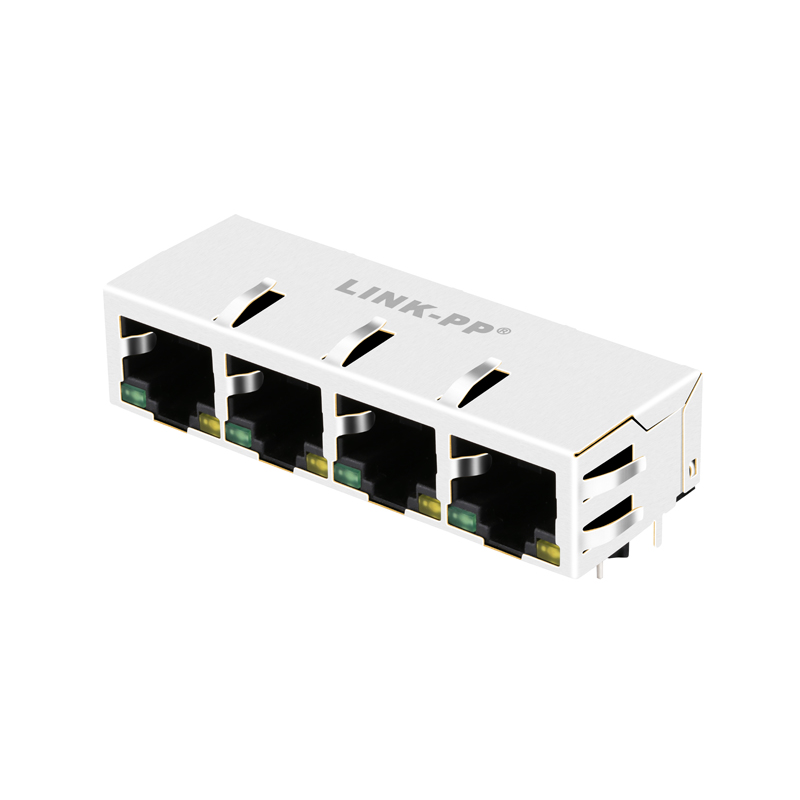

JFM3841-GPON-4F 1X4 Port RJ45 Connector with/without LED RJ45 Modular Jack LPJG49811AENL
Products Description
Item
RJ45 Female Connector
Link-PP Part Number
LPJG49811AENL
Compatible With
JFM3841-GPON-4F
Part Status
Active
Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet (Non-PoE)
Number of Ports
1x1 Port
Speed
10/100/1000 Base-T
Latch
Down/Up
Cores per Port
4
Orientation
90° Angle (Right)
PCB Mount Angle
SIDE ENTRY
Shield EMI Tabs
Without/With
LED Option
Green/Yellow
PCB
FR4
PCB Retaining Post
T POST
Temperature
0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit
Yes
AutomDX
YES
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C
