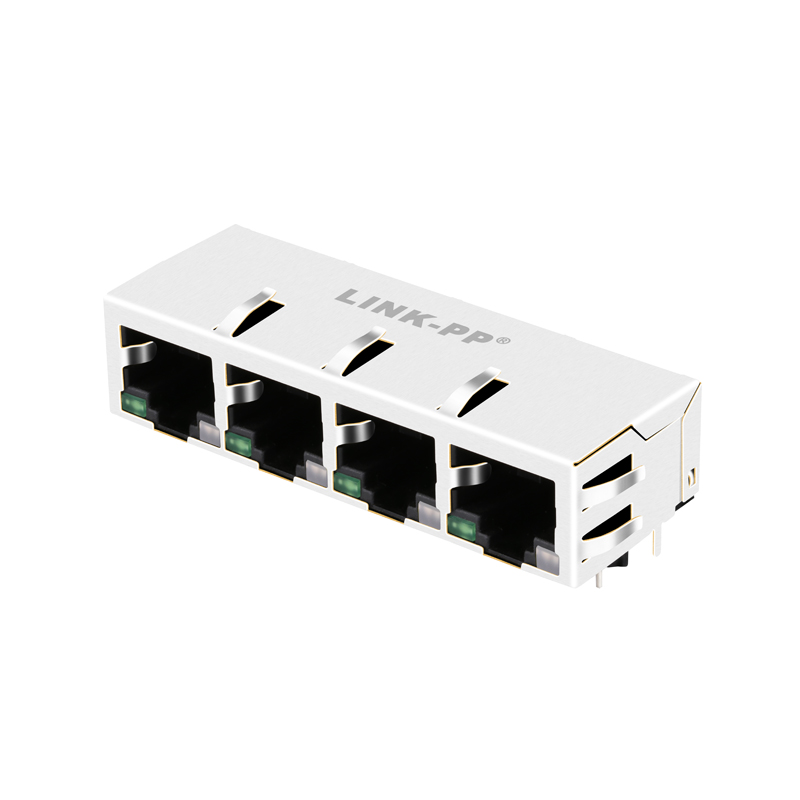

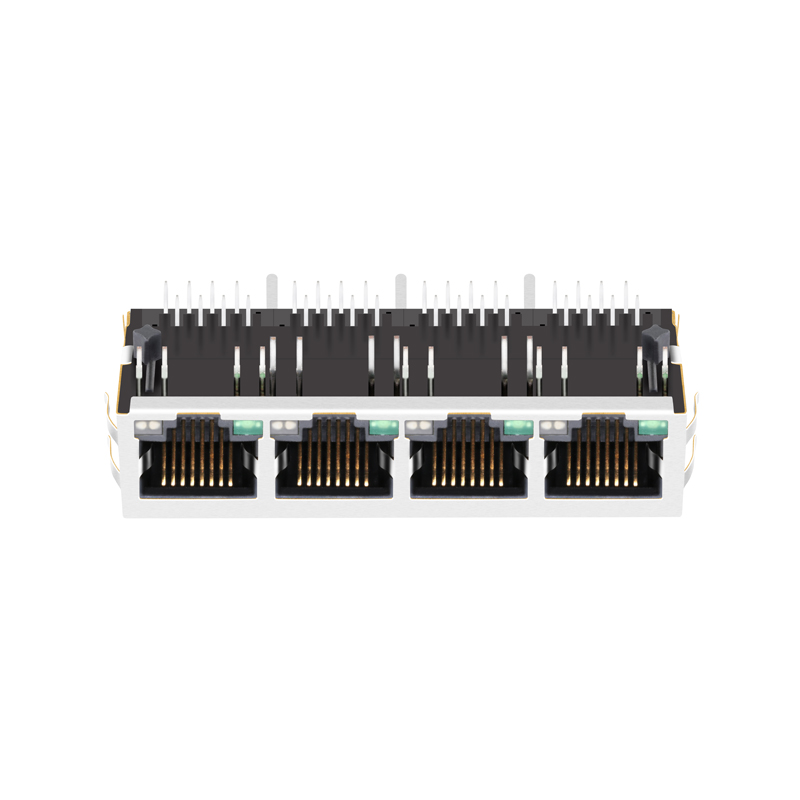

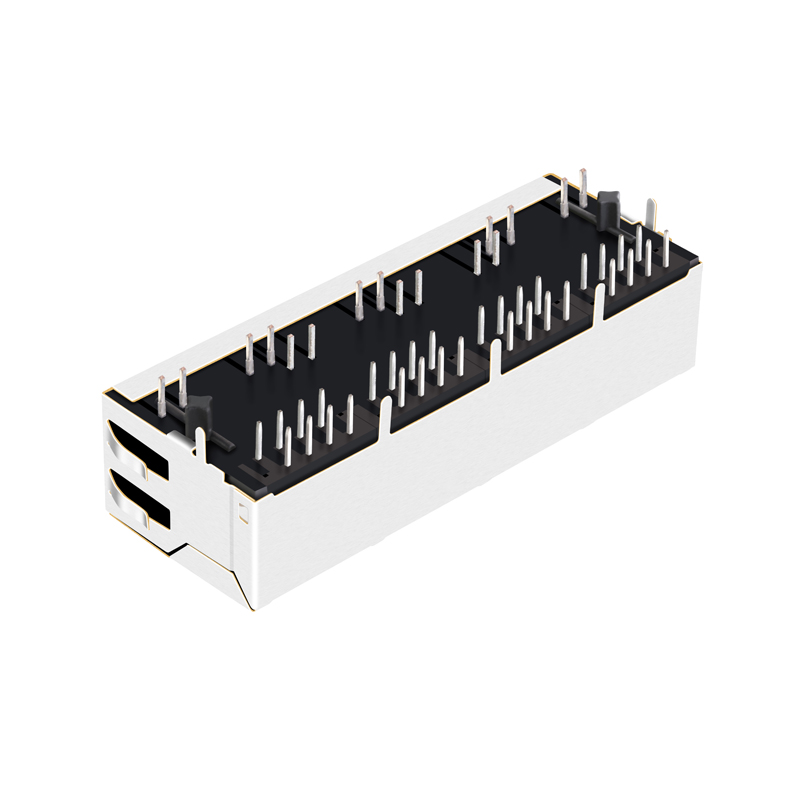

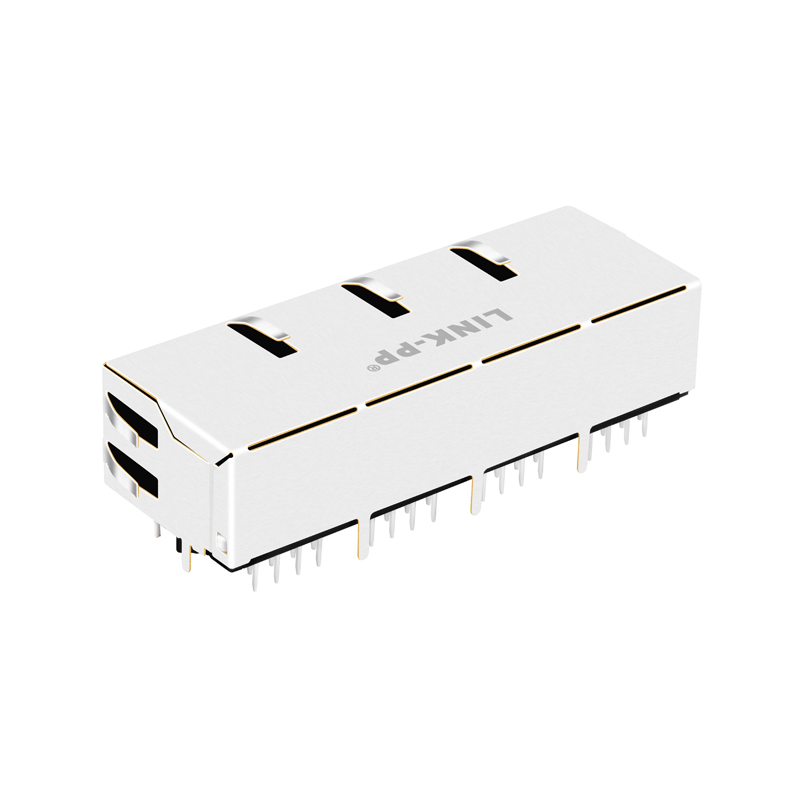

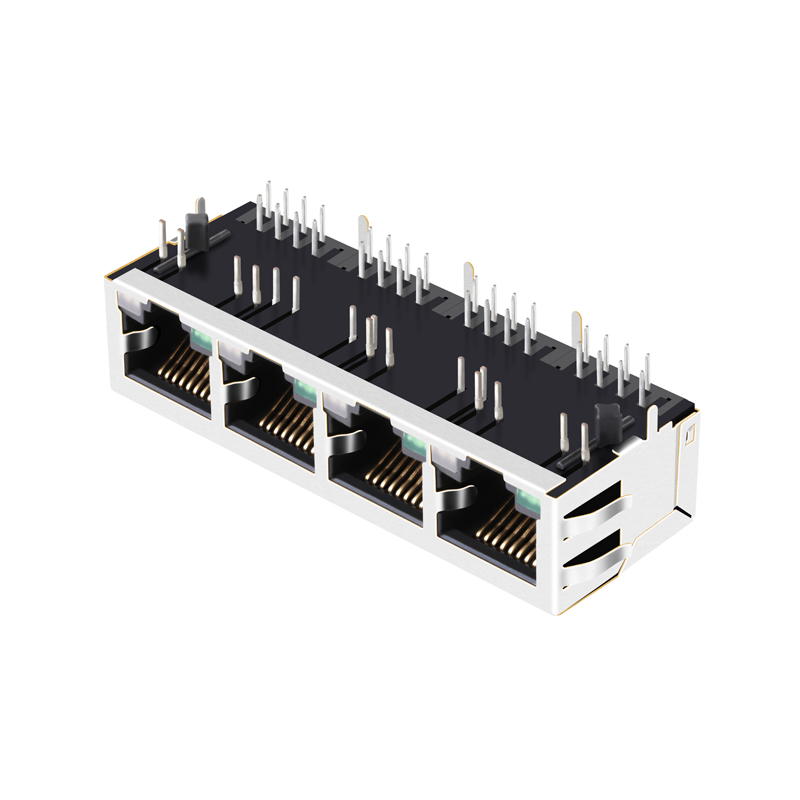

0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45

Product Description

RJ45 Connector Magjack Products
0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45
Products Description
Item RJ45 Female Connector
Compatible With 0826-1G4L-43M-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
0826-1G4L-43M-F Dimensions and Pins
Explore our extensive product line below for more configurations
RJ45 Connector Series Overview
Product Structure 1
Product Structure 2
Product Structure 3
Product Performance Test
Factory Service Support
Quality Standard Control
Packaging Details
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Workshop
Automatic Production Equipment
Testing Laboratory
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
4. What after-service support do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are accepted. Please send us your inquiry and details to discuss your custom project.
6. What is your manufacturing advantage?
With over 19 years of professional manufacturing experience, we have established long-term partnerships with leading global enterprises such as Intel and Jabil.
