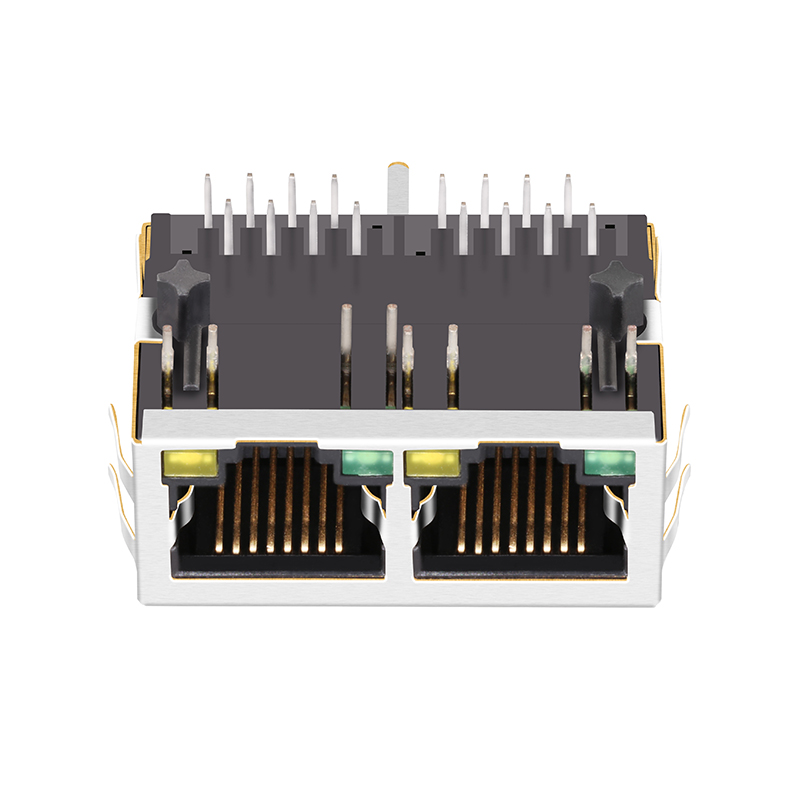

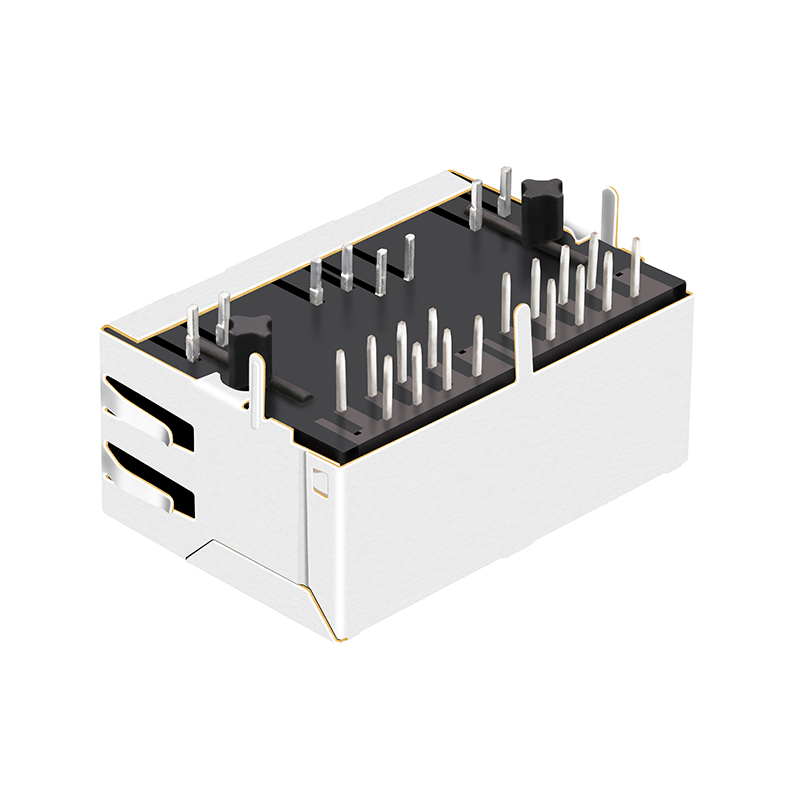

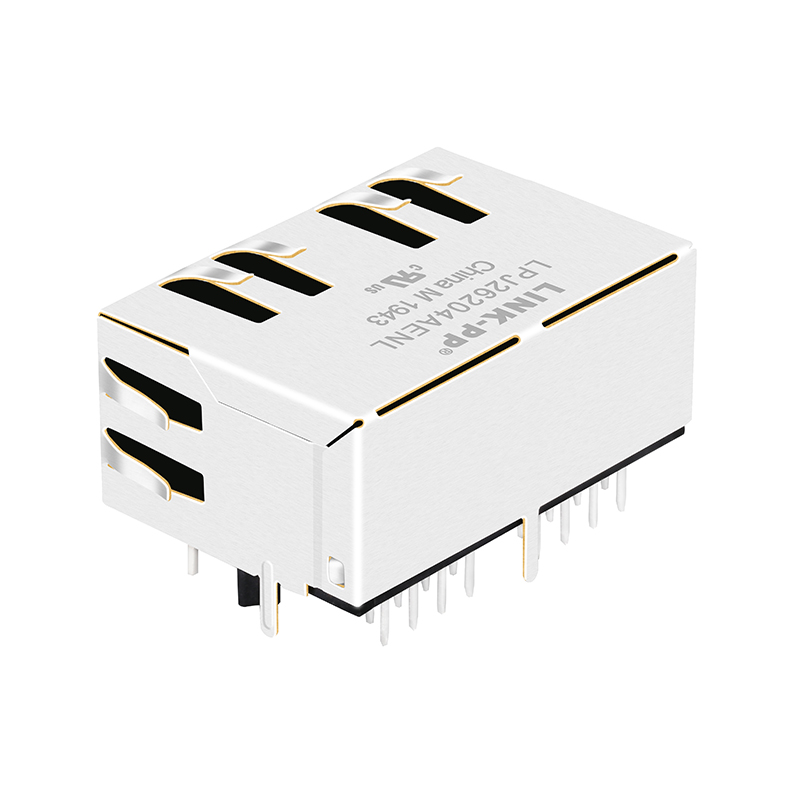

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Product Description

Product Description

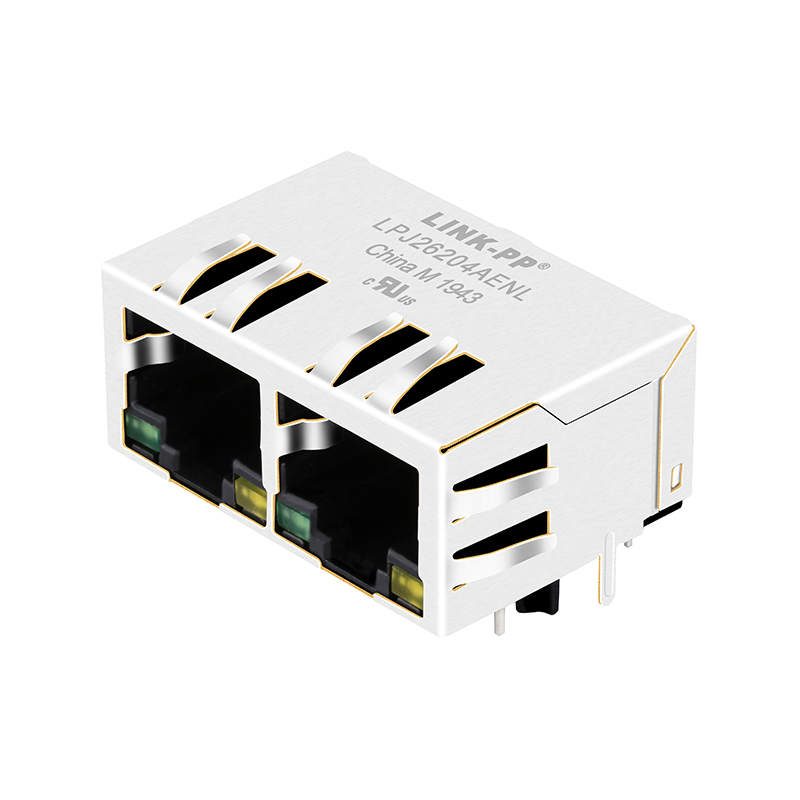

Product View 1
Product View 2

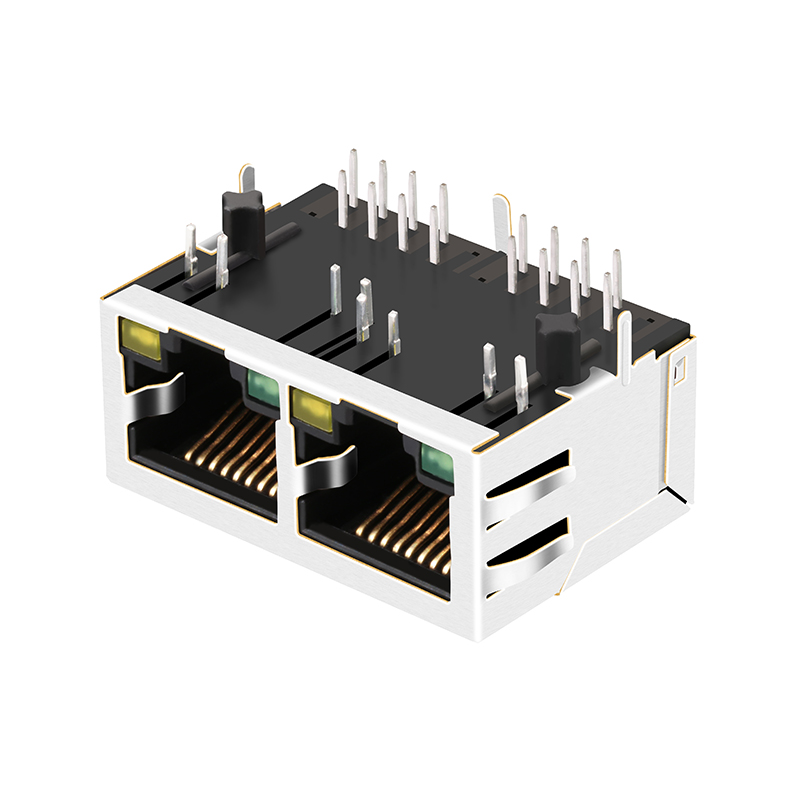

Product View 3
Specification
Item Value
Model NumberLPJ26204AENL
Part StatusActive
Connector TypeRJ45
Applications-Lan10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Packing & Delivery
Packaging Details
Package: Tray
Carton Size: 37*30*30cm
G.W. / Carton: 9kg
Qty / Carton: 600pcs
SPQ: 30pcs
N.W / Pcs: 0.015kg
Packaging Box View

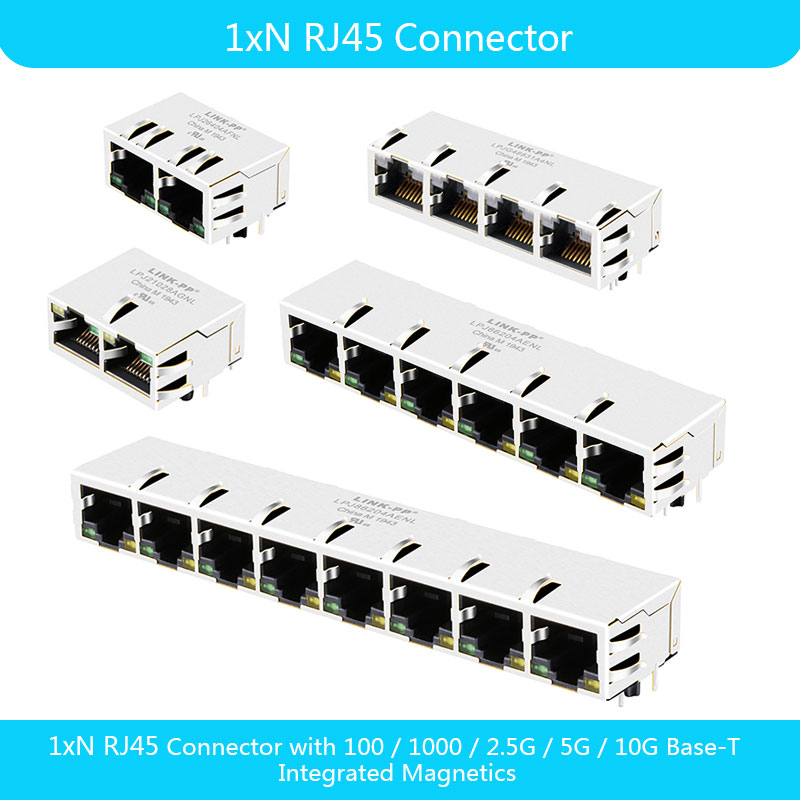

1xN Port RJ45 Connector Design
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector
Applications:
Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible with Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC's for Ethernet applications such as Microchip, Broadcom, Marvell, Hubs, Routers, Switches, IP cameras, and IoT applications.
