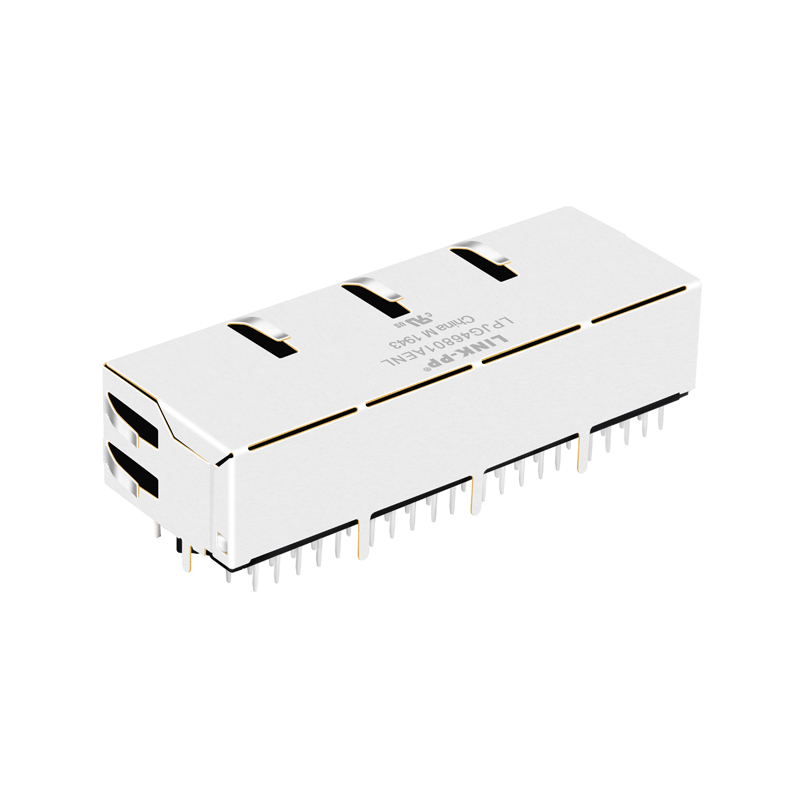

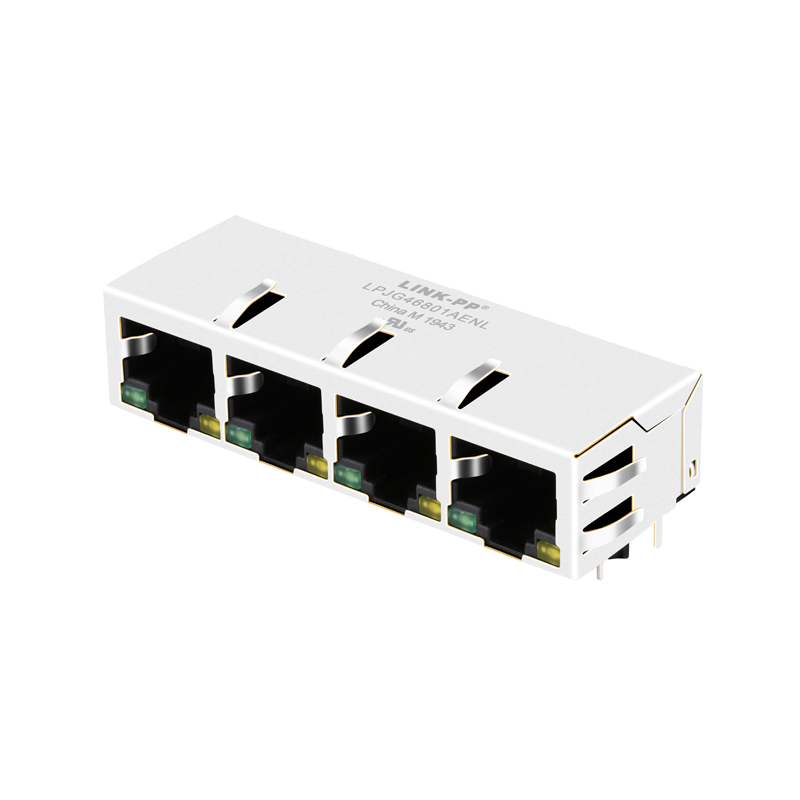

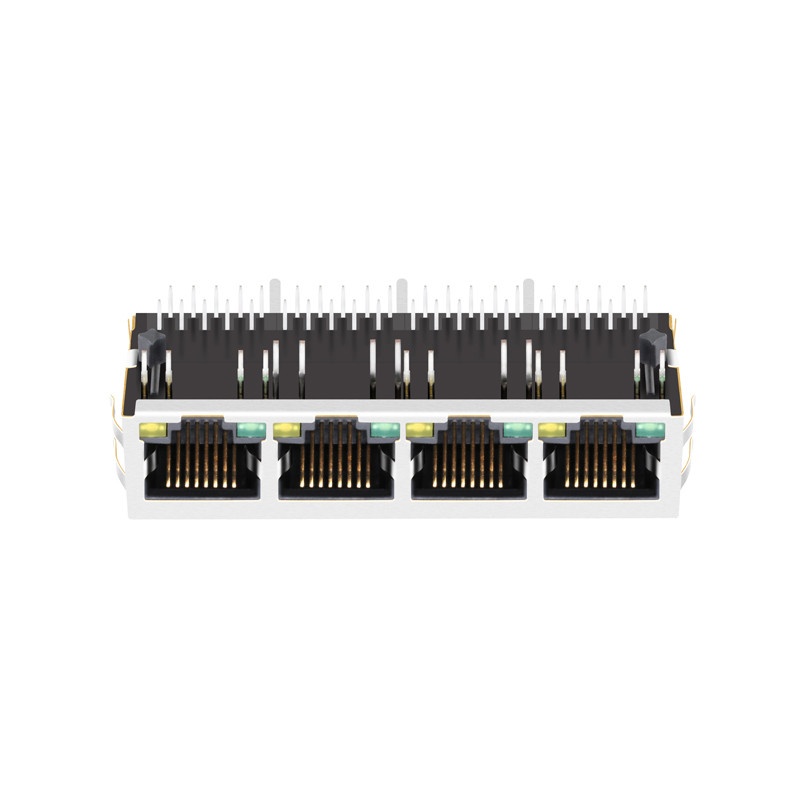

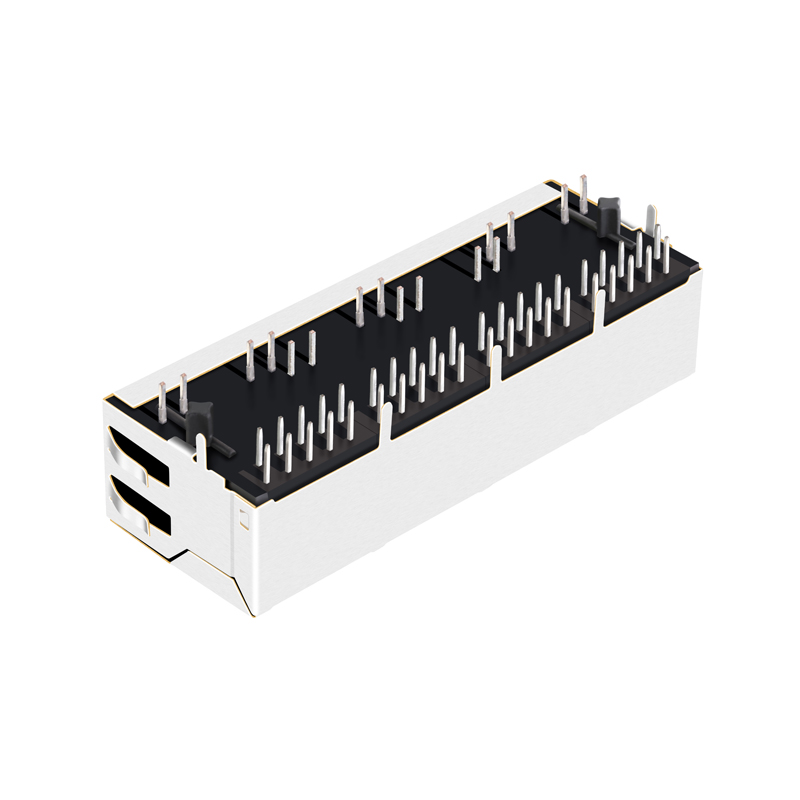

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description
Product Image 1

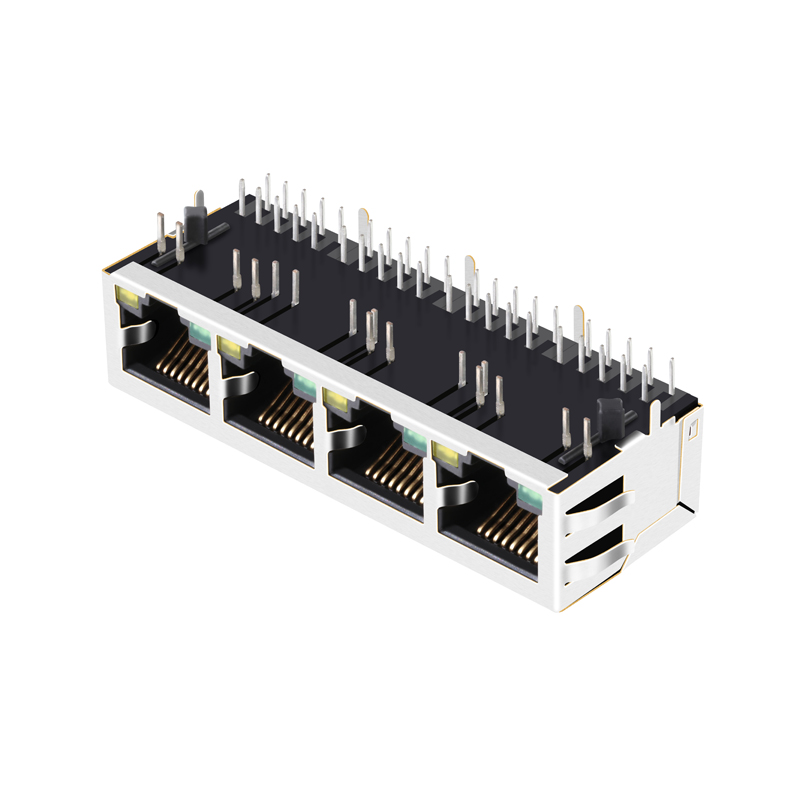

Product Image 2
Specification
Item Value
Model NumberLPJG46801AENL
Part StatusActive
Connector TypeRJ45
Applications10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen - Yellow
Number of Cores per Jack8
ShieldingShielded, EMI Finger
Number of Ports1X4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Packing & Delivery
Packaging Details
The Part Number package: 20 pcs in 1 tray, 20 tray in 1 carton, which is 37*30*30cm, 10KGS (400pcs) of each carton.
Packing Image
Features & Applications

100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector

Applications: Suitable for industrial temperatures from -40 °C up to +85 °C. Compatible to Industrial Ethernet systems like EtherCAT or Profinet.

Compatibility: Compliant with most IC's for Ethernet applications such as Microchip, Broadcom, Marvell. Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications.

Application Features
Product Layout Diagram 1
Product Layout Diagram 2
Product Layout Diagram 3
Product Layout Diagram 4
Product Layout Diagram 5
FAQ
What are the main application environments for these RJ45 connectors?
They are widely used in networking and communication equipment such as Hubs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. They are designed to operate in industrial temperatures ranging from -40 °C up to +85 °C and are compatible with Industrial Ethernet systems like EtherCAT or Profinet.
How is product quality guaranteed?
Quality is maintained through strict manufacturing standards. A pre-production sample is always created and tested before mass production begins, and a final inspection is always performed before shipment.
What categories of products are available in your range?
We specialize in magnetic telecom and networking components, including RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
What features make these connectors reliable for industrial use?
These connectors feature gold contact finish (thickness of 6.00µin), a shielded design with EMI fingers to reduce interference, integrated board guides, and support for 10/100/1000 Base-T with AutoMDIX.
What are the accepted delivery terms and payment methods?
We support a wide variety of delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Supported payment options include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
What are the supported transaction currencies?
Transactions are accepted in multiple global currencies including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
